Description
SIMATIC S7-1200, Digital Input SM1231 Overview :-
For the convenient recording of temperatures with great accuracy
7 common thermocouple types can be used
Also for the measurement of analog signals with a low level (80 mV)
Can easily be retrofitted to existing plant
Function :-
Different measurement ranges:-
Thermocouples of types J, K, T, E, R, S and N; analog signal recording 80 mV.Check for open lines.
Compensation of the cold connecting point:
Faults caused by contact voltages at the connection between thermocouple and module are prevented; when recording analog signals (80 mV), the compensation is automatically deactivated.
SIMATIC S7-1200, Analog Input-Output SM1231/ SM1232 Models :-
| MLFB | DESCRIPTION |
| 6ES72314HD320XB0 | SM 1231, 4 AI, +/-10V, +/-5V, +/-2.5V, OR 0-20MA/4-20 MA, 12 BIT + SIGN BIT (13 BIT ADC) |
| 6ES72314HF320XB0 | SM 1231, 8 AI, +/-10V, +/-5V, +/-2.5V, OR 0-20MA/4-20 MA, 12 BIT + SIGN OR (13 BIT ADC) |

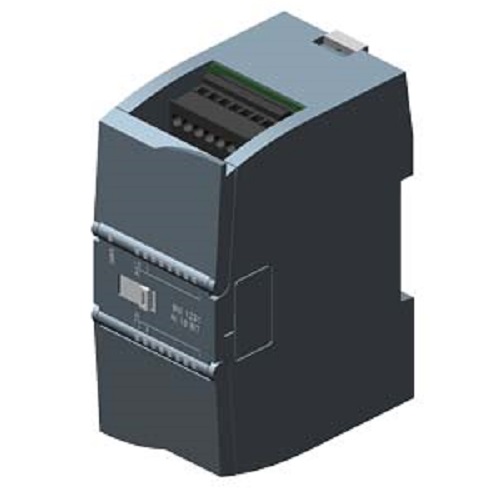

| 6ES72315ND320XB0 | SM 1231, 4 AI, +/-10V, +/-5V, +/-2.5V, +/-1.25 OR 0-20MA/4-20 MA, 15 BIT + SIGN BIT |
| 6ES72315PD320XB0 | SM 1231 RTD, 4 X AI RTD MODULE |
| 6ES72315PF320XB0 | SM 1231RTD, 8 X AI RTD MODULE, |
| 6ES72315QD320XB0 | SM 1231 TC, 4 AI THERMOCOUPLE |
| 6ES72315QF320XB0 | SM 1231 TC, 8 AI THERMOCOUPLE |
| 6ES72324HB320XB0 | SM 1232, 2 AO, +/-10V, 14 BIT RESOLUTION, OR 0 - 20 MA/4 - 20 MA, 13 BIT RESOLUTION |
| 6ES72324HD320XB0 | SM 1232, 4 AO, +/-10V, 14 BIT RESOLUTION, OR 0 - 20 MA/4 - 20 MA, 13 BIT RESOLUTION |
