Description
Product highlights / overview :-
The fail-safe CPU with a large program memory and quantity framework for demanding applications
For constructing a fail-safe automation system for plants with increased safety requirements
Complies with safety requirements to SIL 3 acc. to IEC 61508 and PL e acc. to ISO 13849.1
Fail-safe I/O modules can be connected in a distributed configuration to both integral PROFIBUS DP interfaces (PROFIsafe)
Fail-safe ET 200M I/O modules can also be connected centrally
Central and distributed use of standard modules for non safety-oriented applications
SIMATIC Micro Memory Card required for operation of CPU.
-
-
- CPU model nos?:-
- ?
- ?
-
| MLFB | DESCRIPTION |
| 6ES73125BF040AB0 | CPU 312C ; 64 KB; 10 DI/6 DO, 2 FAST COUNTERS (10 KHZ), MMC REQ. |
| 6ES73135BG040AB0 | CPU 313C;? 128 KB;24 DI/16 DO, 4AI, 2AO 1 PT100, 3 FAST COUNTERS (30 KHZ),MMC REQ |
| 6ES73136BG040AB0 | CPU 313C-2 PTP; 128 KB;16 DI/16 DO, 3 FAST COUNTERS (30 KHZ),MMC REQ |
| 6ES73136CG040AB0 | CPU 313C-2DP; 128 KB;16 DI/16 DO, 3 FAST COUNTERS (30 KHZ), MMC REQ |
| 6ES73146BH040AB0 | CPU 314C-2 PTP;192 KB,24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ), MMC REQ |
| 6ES73146CH040AB0 | ?CPU 314C-2 DP ;192 KB,24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ),MMC REQ. |
| 6ES73146EH040AB0 | CPU 314C-2PN/DP ;192 KB,24 DI/16 DO, 4AI, 2AO, 1 PT100, 4 FAST COUNTERS (60 KHZ),MMC REQ. |
| 6ES73121AE140AB0 | CPU 312,32 KB;MMC REQ. |
| 6ES73141AG140AB0 | ?CPU 314 ;128 KB,MMC REQ. |
| 6ES73152AH140AB0 | CPU 315-2DP;256 KB,MMC REQ. |
| 6ES73172AK140AB0 | ?CPU317-2 DP, 1 MB,MMC REQ. |
| 6ES73152EH140AB0 | CPU 315-2 PN/DP,384 KB,MMC REQ. |
| 6ES73172EK140AB0 | CPU 317-2 PN/DP, 1 MB,MMC REQ. |
| 6ES73183EL010AB0 | CPU 319-3 PN/DP, 2 MB,MMC REQ. |
| 6ES73156FF040AB0 | CPU 315F-2DP FAILSAFE ;384 KB |
| 6ES73152FJ140AB0 | CPU315F-2 PN/DP, 512 KB |

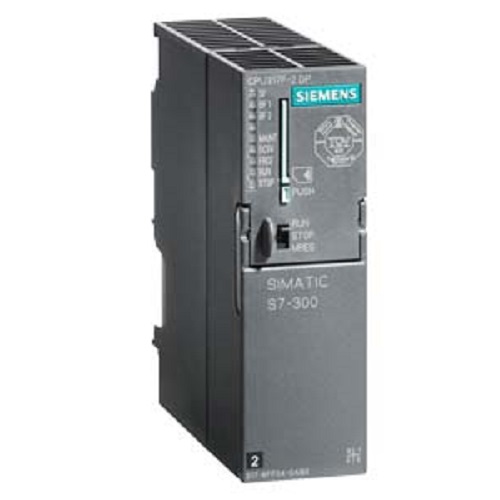

| 6ES73176FF040AB0 | CPU 317F-2DP,1.5 MB |
| 6ES73172FK140AB0 | CPU317F-2 PN/DP, 1.5 MB |
| 6ES73183FL010AB0 | CPU319F-3 PN/DP,? 2.5 MB,MMC REQ. |
| 6ES73211BH020AA0 | 16 CHANNEL DIGITAL INPUT CARD - 16X24VDC OPTICALLY ISOLATED |
| 6ES73211BH500AA0 | 16 CHANNEL DIGITAL INPUT CARD - 16X24VDC SOURCE INPUT |
| 6ES73211CH000AA0 | 16 CHANNEL DIGITAL INPUT CARD - 16X24VDC..48V DC? |
| 6ES73211CH200AA0 | 16 CHANNEL DIGITAL INPUT CARD - 16X48VDC..125V DC? |
| 6ES73211BL000AA0 | 32 CHANNEL DIGITAL INPUT CARD - 32X24VDC |
| 6ES73211FH000AA0 | 16 CHANNEL DIGITAL INPUT CARD - 16X120/230V AC OPTICALLY ISOLATED |
| 6ES73217BH010AB0 | 16 CHANNEL DIGITAL INPUT CARD - 16X24V DC GALVANICALLY ISOLATED WITH DIAG |
| 6ES73211EL000AA0 | 32 CHANNEL DIGITAL INPUT CARD - 32X120 VAC |
| 6ES73211FF010AA0 | 8 CHANNEL DIGITAL INPUT CARD - 8X120/230 VAC, OPTICALLY ISOLATED,1 X 20 PIN |
| 6ES73211FF100AA0 | 8 CHANNEL DIGITAL INPUT CARD - 8X120/230 VAC, OPTICALLY ISOLATED,1 X 40 PIN |
| 6ES73221BF010AA0 | 8 CHANNEL DIGITAL OUTPUT CARD - 8X24 VDC/2AMP |
| 6ES73228BF000AB0 | 8 CHANNEL DIGITAL OUTPUT CARD - 8X24 VDC/0.5AMP, SHORT-CIRCUIT PROTECTION,OPTICALLY ISOLATED |
| 6ES73221BL000AA0 | 32 CHANNEL DIGITAL OUTPUT CARD - 32X24 VDC |
| 6ES73221BH010AA0 | 16 CHANNEL DIGITAL INPUT CARD - 16X24V DC |
| 6ES73221FH000AA0 | 16 CHANNEL DIGITAL INPUT CARD - 16X120/230V AC OPTICALLY ISOLATED |
| 6ES73225HF000AB0 | 8 CHANNEL DIGITAL OUTPUT CARD - 8XRELAY, 2A, RC FILTER,? OVERVOLTAGE PROTECTION |
| 6ES73221HH010AA0 | 16 CHANNEL DIGITAL OUTPUT CARD - 16XRELAY, OPTICALLY ISOLATED |
| 6ES73221BH100AA0 | 16 CHANNEL DIGITAL OUTPUT CARD - 16X24V DC ,GALVANICALLY ISOLATED |
| 6ES73225GH000AB0 | 16 CHANNEL DIGITAL OUTPUT CARD - 16X24V DC /48VDC, 0.5A |
| 6ES73221CF000AA0 | 8 Channel Digital Output 8X48VDc...125VDC, 1.5A |
| 6ES73221FF010AA0 | 8 CHANNEL DIGITAL OUTPUT CARD - 8X120VAC/230VAC, 1AMP |
| 6ES73225FF000AB0 | 8 CHANNEL DIGITAL OUTPUT CARD - 8X120VAC/230VAC, 2AMP |
| 6ES73221FL000AA0 | 32 CHANNEL DIGITAL OUTPUT CARD - 32X120 VAC |
| 6ES73221HF010AA0 | 8 CHANNEL DIGITAL OUTPUT CARD - 8XRELAY, 2A |
| 6ES73221HF100AA0 | 8 CHANNEL DIGITAL OUTPUT CARD - 8XRELAY, 5A |
| 6ES73231BH010AA0 | 16 CHANNEL DIGITAL INPUT/OUTPUT CARD - 8DI&8DO, 24V DC? OPTICALLY ISOLATED |
| 6ES73231BL000AA0 | 32 CHANNEL DIGITAL INPUT/OUTPUT CARD - 16DI&16DO, 24V DC? OPTICALLY ISOLATED |
| 6ES73311KF020AB0 | 8 CHANNEL ANALOG INPUT CARD - 8X, OPTICALLY ISOLATED |
| 6ES73317KF020AB0 | 8 CHANNEL ANALOG INPUT CARD - 8X4-20mA/0-10V DC T/C |
| 6ES73317PF010AB0 | 8 CHANNEL ANALOG INPUT CARD - 8XPT100, OPTICALLY ISOLATATED |
| 6ES73317PF110AB0 | 8 CHANNEL ANALOG INPUT CARD - 8XTC, OPTICALLY ISOLATATED |
| 6ES73317KB020AB0 | 2 CHANNEL ANALOG INPUT CARD - 2*, 9/12/14 BITS |
| 6ES73317NF000AB0 | 8 CHANNEL ANALOG INPUT CARD - 8 AE; +/-5/10V, 1-5 V, +/-20MA, |
| 6ES73317NF100AB0 | 8 CHANNEL ANALOG INPUT CARD - 16 BIT RESOLUTION |
| 6ES73317HF010AB0 | 8 CHANNEL ANALOG INPUT CARD - 14 BIT RESOLUTION |
| 6ES73325HB010AB0 | 2 CHANNEL ANALOG OUTPUT CARD - 2X4-20MA/0-10V DC OPTICALLY? ISOLATED |
| 6ES73325HD010AB0 | 4 CHANNEL ANALOG OUTPUT CARD - 4X4-20MA/0-10V DC |
| 6ES73325HF000AB0 | 8 CHANNEL ANALOG OUTPUT CARD - 8X4-20MA/0-10V DC |
| 6ES73327ND020AB0 | 4 CHANNEL ANALOG OUTPUT CARD - 4X0-10V, 1-5V, +/-10V, +/-20MA |
| 6ES73340CE010AA0 | 4 CHANNEL ANALOG INPUT /2 ANALOG OUTPUT CARD - 4AI&2AO |
| 6ES73340KE000AB0 | 4 CHANNEL ANALOG INPUT /2 ANALOG OUTPUT CARD - 4AI&2AO EXTENDED CLIMATE RANGE |
| 6ES73211BP000AA0 | 64 CHANNEL DI |
| 6ES73221BP000AA0 | 64 CHANNELDO SOURCE |
| 6ES73221BP500AA0 | 64 CHANNELDO SINK |
| 6ES73261BK020AB0 | F-DI 24 INPUT, DC 24V( 12 CH FOR SIL3) |
| 6ES73261RF010AB0 | F-DI 8 INPUT NAMUR, DC 24V( 4 CH FOR SIL3) |
| 6ES73934AA100AA0 | LK 393 CABLE GUIDE ( USE FOR F-MODULE IN HAZARDOUS AREA , 5 UNITS ) |
| 6ES73262BF100AB0 | F-DO 10 OUTPUT, DC 24V, 2 A ( 10 CH FOR SIL3) |
| 6ES73262BF410AB0 | F-DO 10 OUTPUT, DC 24V, 2 A ( 10 CH FOR SIL3) |
| 6ES73364GE000AB0 | F-AI,? 6 INPUTS , 15BIT, WITH HART SUPPORT? ( 6 CH FOR SIL3) |
| 6ES71957KF000XA0 | ISOLATION MODULE ( FOR SIMULTANEOUS OPER. OF STD. & F MODULES ) |
| 6ES71957HG000XA0 | ACTIVE BUS MODULE , FOR ISOLATION MODULE |
| 6ES73501AH030AE0 | ?FM 350-1 COUNTER MODULE, 1X500KHZ |
| 6ES73502AH010AE0 | ?FM 350-2 COUNTER MODULE, 8X20KHZ |
| 6ES73521AH020AE0 | FM352; CAM Control incl config Pack |

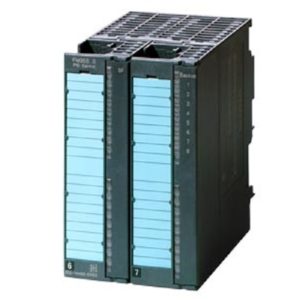

| 6ES73550VH100AE0 | FM355C-4 CHANNEL CONTI. - 4AI+8DI+4AO, INCL CONFIG PKG. FOR PID LOOPS |
| 6ES73551VH100AE0 | FM355C-4 CHANNEL STEP AND PULSE - 4AI+8DI+8DO, INCL CONFIG PKG. FOR PID LOOPS |
| 6ES73552CH000AE0 | FM355-2C TEMP. CLOSED CONTROL MODULE |
| 6ES73552SH000AE0 | FM355-2S TEMP. CLOSED CONTROL MODULE |
| 6ES73401AH020AE0 | CP340 WITH RS232C INCL CONFIG PACK |
| 6ES73401CH020AE0 | CP340 WITH RS422/485INTERFACE? INCL CONFIG PKG |
| 6ES73411AH020AE0 | CP341 WITH RS232C INCL CONFIG PACK |
| 6ES73411CH020AE0 | CP341 WITH RS422/485INTERFACE? INCL CONFIG PKG |
| 6ES79538LF310AA0 | MICRO MEMORY CARD 64KB; NO BATTERY REQ |
| 6ES79538LG310AA0 | MICRO MEMORY CARD 128KB; NO BATTERY REQ |
| 6ES79538LJ310AA0 | MICRO MEMORY CARD 512KB; NO BATTERY REQ |
| 6ES79538LL310AA0 | MICRO MEMORY CARD 2MB; NO BATTERY REQ |
| 6ES7953-8LM32-0AA0 | SIMATIC S7, Micro Memory Card for S7-300/C7/ET 200, 3, 3V Nflash, 4 MB |
| 6ES79538LP310AA0 | MICRO MEMORY CARD 8MB; NO BATTERY REQ |
| 6ES73901AB600AA0 | RAIL L=160MM |
| 6ES73901AE800AA0 | RAIL L=480MM |
| 6ES73901AF300AA0 | RAIL L=530MM |
| 6ES73901AJ300AA0 | RAIL L=830MM |
| 6ES73901BC000AA0 | RAIL L=2000MM |
| 6ES73603AA010AA0 | IM 360,INTERFACE MODULE |
| 6ES73613CA010AA0 | IM 361,INTERFACE MODULE |
| 6ES73650BA010AA0 | IM 365,INTERFACE MODULE |
| 6ES73683BB010AA0 | CONN CABLE BET IM 360/IM 361 LENGTH: 1M |
| 6ES73683BC510AA0 | CONN CABLE BET IM 360/IM 361 LENGTH: 2.5M |
| 6ES73683BF010AA0 | CONN CABLE BET IM 360/IM 361 LENGTH: 5M |
| 6ES73683CB010AA0 | CONN CABLE BET IM 360/IM 361 LENGTH: 10M |
| 6ES73924BB000AA0 | CONNECTOR CABLE? LENGTH - 1.0M ( 2 PC IN 1 PACK ) |
| 6ES73924BC500AA0 | CONNECTOR CABLE? LENGTH - 2.5M ( 2 PC IN 1 PACK ) |
| 6ES73924BF000AA0 | CONNECTOR CABLE? LENGTH - 5M ( 2 PC IN 1 PACK ) |
| 6ES73921AN000AA0 | TERMINAL BLOCK 40pts. SCREW CONNECT (2 PC in 1 PACK ) |
| 6ES73921BN000AA0 | TERMINAL BLOCK 40pts. CLAMP CONNECT (2 PC in 1 PACK ) |
| 6ES73921AJ000AA0 | FRONT CONNECTOR 20-PIN ( SCREW TYPE ) |
| 6ES73921AM000AA0 | FRONT CONNECTOR 40-PIN ( SCREW TYPE ) |
