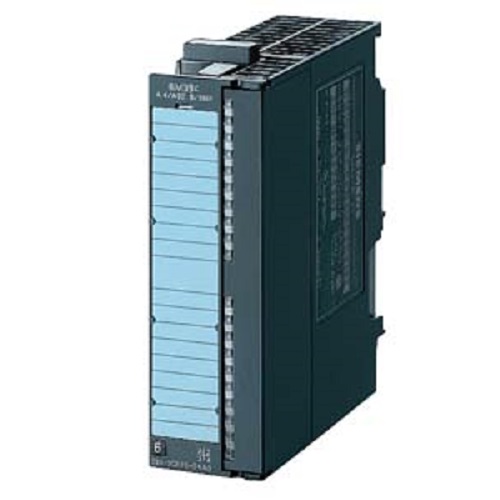

Description
- Product overview :-
-?For the connection of analog sensors and actuators
-?Analog inputs and outputs
Function :-
The analog input/output modules convert :-
- -?Analog signals from the process into digital values for the PLC and
- - Digital signals from the PLC into analog signals for the process.
- ?
The following functions are provided :-
- -?Input resolution:
? ? ? ?8 bit (6ES7?334-0CE01-0AA0)
? ? ? ?12 bit (6ES7?334-0KE00-0AB0) - ?
- - Output resolution: 8 bit
- ?
- - Measuring range 0 to 10 V, 0 to 20 mA;
? ? ? ?the range is selected using the corresponding connections on the module.
SIMATIC S7-300 CPU, Input/Output Models :-
| MLFB | DESCRIPTION |
| 6ES73231BH010AA0 | 16 CHANNEL DIGITAL INPUT/OUTPUT CARD - 8DI&8DO, 24V DC? OPTICALLY ISOLATED |
| 6ES73231BL000AA0 | 32 CHANNEL DIGITAL INPUT/OUTPUT CARD - 16DI&16DO, 24V DC? OPTICALLY ISOLATED |
| 6ES73311KF020AB0 | 8 CHANNEL ANALOG INPUT CARD - 8X, OPTICALLY ISOLATED |
| 6ES73317KF020AB0 | 8 CHANNEL ANALOG INPUT CARD - 8X4-20mA/0-10V DC T/C |
| 6ES73317PF010AB0 | 8 CHANNEL ANALOG INPUT CARD - 8XPT100, OPTICALLY ISOLATATED |
| 6ES73317PF110AB0 | 8 CHANNEL ANALOG INPUT CARD - 8XTC, OPTICALLY ISOLATATED |
| 6ES73317KB020AB0 | 2 CHANNEL ANALOG INPUT CARD - 2*, 9/12/14 BITS |
| 6ES73317NF000AB0 | 8 CHANNEL ANALOG INPUT CARD - 8 AE; +/-5/10V, 1-5 V, +/-20MA, |
| 6ES73317NF100AB0 | 8 CHANNEL ANALOG INPUT CARD - 16 BIT RESOLUTION |
| 6ES73317HF010AB0 | 8 CHANNEL ANALOG INPUT CARD - 14 BIT RESOLUTION |
| 6ES73325HB010AB0 | 2 CHANNEL ANALOG OUTPUT CARD - 2X4-20MA/0-10V DC OPTICALLY? ISOLATED |
| 6ES73325HD010AB0 | 4 CHANNEL ANALOG OUTPUT CARD - 4X4-20MA/0-10V DC |
| 6ES73325HF000AB0 | 8 CHANNEL ANALOG OUTPUT CARD - 8X4-20MA/0-10V DC |
| 6ES73327ND020AB0 | 4 CHANNEL ANALOG OUTPUT CARD - 4X0-10V, 1-5V, +/-10V, +/-20MA |
| 6ES73340CE010AA0 | 4 CHANNEL ANALOG INPUT /2 ANALOG OUTPUT CARD - 4AI&2AO |
| 6ES73340KE000AB0 | 4 CHANNEL ANALOG INPUT /2 ANALOG OUTPUT CARD - 4AI&2AO EXTENDED CLIMATE RANGE |
