Description
SIMATIC S7-1500, Shielding Terminal Overview :-
- Components for implementing the integrated S7-1500 shielding concept:
- 24 V DC infeed element for supplying the analog module:
strict separation of infeed and analog signals ensures high EMC stability.
- Shield bracket for insertion in the front connector:
allows a low-impedance connection and optimally dissipates interference.

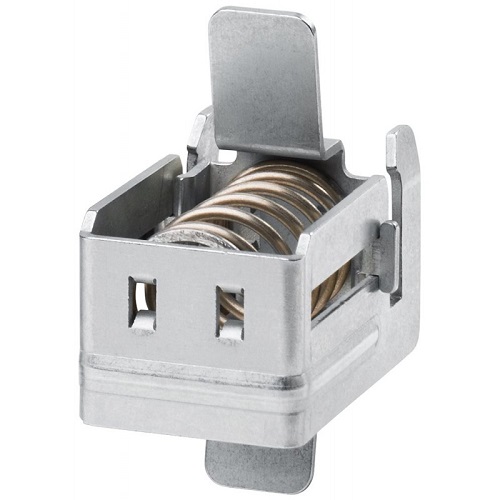

- Universal shield terminal:
connects the cable shield with the shield bracket and is simultaneously used for mechanical fixing.
Included in the scope of supply of the analog modules. Available as a spare part in two versions:
- Shielding set, comprising infeed element, shield bracket, and shield terminal (pack of 5 units each)
- Individual shield terminals (pack of 20)
No tool required for assembly/disassembly
SIMATIC S7-1500 Module Models :-
| MLFB | DESCRIPTION |
| 6ES75401AB000AA0 | CM PTP RS422/485 BA |
| 6ES75401AD000AA0 | CM PTP RS232 BA |
| 6ES75411AB000AB0 | CM PTP RS422/485 HF |
| 6ES75411AD000AB0 | CM PTP RS232 HF |
| 6ES75455DA000AB0 | CM DP FOR ET 200SP CPU |
| 6ES75501AA000AB0 | S7-1500, TM COUNT 2X24V |
| 6ES75511AB000AB0 | S7-1500, TM POSINPUT 2 |
| 6ES75521AA000AB0 | TM TIMER DIDQ 16X24V |
| 6ES75901AB600AA0 | MOUNTING RAIL 160MM (6.3") |
| 6ES75901AC400AA0 | Mounting rail, 245 mm (with drill hole) |
| 6ES75901AE800AA0 | Mounting rail, 482 mm (with drill hole) |
| 6ES75901AF300AA0 | MOUNTING RAIL 530MM (13.8") |
| 6ES75901AJ300AA0 | MOUNTING RAIL 830MM (32.7") |
| 6ES75901BC000AA0 | MOUNTING RAIL 2,000MM (78.4") |
