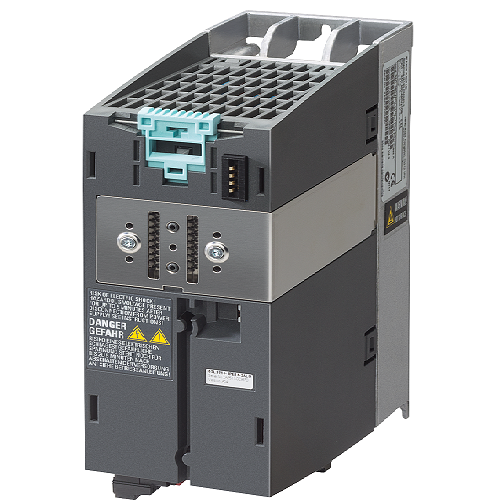

6SL3210-1PE14-3UL1 | SINAMICS PM2402 Power Module

6SL3210-1PE14-3UL1 | SINAMICS PM2402 Power Module

Description:

SINAMICS Power Module PM240-2 unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 1.1 kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 ?C, power low overload: 1.5kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 ?C 196x 73x 165 (HxWxD), FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6

Make SIEMENS
Category SINAMICS PM240 2 Power Module
Input Number of phases 3 AC
Line voltage 380 ... 480 V ?10 %
Line frequency 47 ... 63 Hz
Rated current (LO) 5.50 A
Rated current (HO) 4.70 A
Output Number of phases 3 AC
Rated voltage 400 V
Rated current (LO) 4.10 A
Rated current (HO) 3.10 A
Max. output current 6.20 A
Pulse frequency 4 kHz
Degree of protection IP20 / UL open type
Size FSA
Net weight 1.40 kg (3.09 lb)
Width 73 mm (2.87 in)
Height 196 mm (7.72 in)
Depth 165 mm (6.50 in)

Description

SINAMICS PM2402 Power Modules Overview :-



PM2402 Power Modules  0.55kW to 25kW (0.75 hp to 400 hp), IP20 degree of protection



The PM2402 Power Modules in frame sizes FSA to FSF are available both with and without an integrated line filter classA of compact design for 200V, 400V and 690V line voltages (except PM2402 frame sizes FSD to FSF: 200v). The PM2402 Power Modules in frame size FSG are available with an integrated line filter Category C3 of compact design for 400V and 690V line voltages, also with integrated line filter Category C2 for a line voltage of 400V. In addition, a DC link reactor is integrated in the PM2402 Power Modules, frame sizes FSD to FSG, and therefore no line reactor is required.


SINAMICS PM2402 Power Modules Models :-



MLFB DESCRIPTION
6SL32101PE118UL1 SIEMENS MAKE 0.37KW/0.5HP G120 DRIVE
6SL32101PE123UL1 SIEMENS MAKE 0.55/0.75HP KW G120 DRIVE
6SL32101PE132UL1 SIEMENS MAKE 0.75/1HP KW G120 DRIVE
6SL32101PE143UL1 SIEMENS MAKE 1.1KW/1.5HP G120 DRIVE
6SL32101PE161UL1 SIEMENS MAKE 1.5KW/2HP G120 DRIVE
6SL32101PE180UL1 SIEMENS MAKE 2.2KW/3HP G120 DRIVE
6SL32101PE211UL0 SIEMENS MAKE 3KW/4HP G120 DRIVE
6SL32101PE214UL0 SIEMENS MAKE 4KW/5HP G120 DRIVE
6SL32101PE218UL0 SIEMENS MAKE 5.5KW/7.5HP G120 DRIVE
6SL32101PE227UL0 SIEMENS MAKE 7.5KW/10HP G120 DRIVE
6SL32101PE233UL0 SIEMENS MAKE 11KW/15HP G120 DRIVE
6SL32101PE238UL0 SIEMENS MAKE 15KW/20HP G120 DRIVE
6SL32101PE245UL0 SIEMENS MAKE 18.5KW/25HP G120 DRIVE
6SL32101PE260UL0 SIEMENS MAKE 22KW/30HP G120 DRIVE
6SL32101PE275UL0 SIEMENS MAKE 30KW/40HP G120 DRIVE
6SL32101PE288UL0 SIEMENS MAKE 37KW/50HP G120 DRIVE
6SL32101PE311UL0 SIEMENS MAKE 45KW/60HP G120 DRIVE
6SL32101PE315UL0 SIEMENS MAKE 55KW/75HP G120 DRIVE
6SL32101PE318UL0 SIEMENS MAKE 75KW/100HP G120 DRIVE
6SL32101PE321UL0 SIEMENS MAKE 90KW/125HP G120 DRIVE
6SL32101PE325UL0 SIEMENS MAKE 110KW/150HP G120 DRIVE
6SL3210-1PE33-0CL0 SIEMENS MAKE 132KW/200HP G120 DRIVE
6SL3210-1PE33-7CL0 SIEMENS MAKE 160KW/250HP G120 DRIVE
6SL3210-1PE34-8CL0 SIEMENS MAKE 200KW/300HP G120 DRIVE
