Description
General information about VIPA 972-0DP20 Profibus connector:

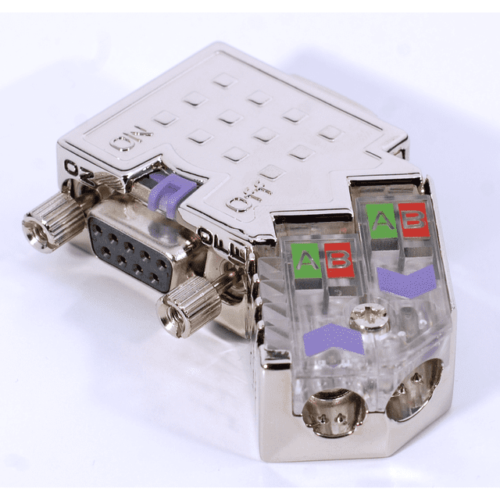

This VIPA 972-0DP20 Profibus connector connects PROFIBUS user knots or complete PRO- FIBUS net components to the PROFIBUS line. Each connector has switchable terminating resistors. Dependent of the type of connector, a PD/diagnosis socket as well as a controller with 4 LED indicators are additionally integrated.
Switchable terminating resistors in VIPA Profibus connector:
The switchable terminating resistors are activated by a slide switch, easily accessible from both sides right and rear. Hereby shutoff of the outgoing bus line is possible. Also for testing purposes the following PROFIBUS components connected via "OUT" can be switched off without removing the connector. Please make sure to terminate the last participants on the bus at both ends and to connect them to the bus cable via "IN".
How to connect the PROFIBUS cable to VIPA 972-0DP20
- Measure wire length on template:
- Insert end of cable and push fixing slider as far as it goes
- Rotate stripping tool repeatedly around the cable
- Pull off stripper (in closed state)
- Remove cut-off wire/core insulations remainder
- Loosen the screw
- Lift contact-cover
- Insert both wires into the ducts provided - connect the wire at A' and the wire at B' !
- Please take care that you do not cause a short circuit between screen and data lines!
- Close the contact cover
- Tighten the contact cover screw.
Features:
- 45 degree connector orientation to line
- Four Diagnostic LEDs
- Rugged, All Metal Casing for Low Noise Interference
- Integrated PG Port
- Switchable Terminating Resistor
- EasyConn fast connection via integrated cutting clamps
You can replace VIPA 972-0DP20 below connectors with VIPA make as well:
| Make | Model no. |
| Molex/Woodhead | PA9D0B-42 |
| Molex/Woodhead | 120103-0003 |
Find more products from VIPA & all other make by clicking here View All Products
Please check out other models with different orientation,
